T8

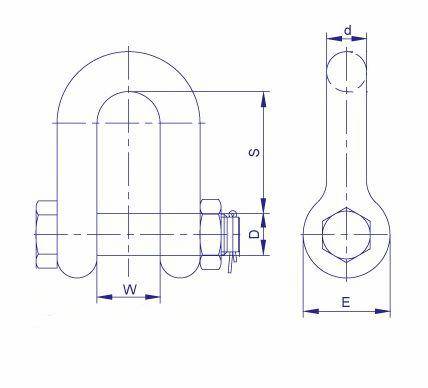

产品型号	额定载荷	W	D	d	E	S	自重
	T	mm	mm	mm	mm	mm	Kg
T-DX2-3/8	2	17	12	9.5	23	32	0.13
T-DX2.5-7/16	2.5	19	14	11	27	36.5	0.21
T-DX3.25-1/2	3.25	20.5	16	13	30	41.5	0.28
T-DX5-5/8	5	27	20	16	38	51	0.6
T-DX7-3/4	7	32	22	19	46	60.5	1.04
T-DX9.5-7/8	9.5	36.5	27	22.5	53	71.5	1.63
T-DX12.5-1	12.5	43	30	25.5	60.5	81	2.38
T-DX15-1 1/8	15	46	33	29	68.5	91	3.59
T-DX18-1 1/4	18	51.5	36	32	76	100	4.65
T-DX21-1 3/8	21	57	39	35	84	111	6.71
T-DX30-1 1/2	30	60.5	42	38	92	122	8.05
T-DX40-1 3/4	40	73	52	44.5	106.5	146	13.18
T-DX50-2	50	82.5	60	51	122	171.5	19.3
T-DX80-2 1/2	80	105	72	66.5	144.5	203	37.22
T-DX110-3	110	127	85	76	165	216	65.3
S6
产品型号	额定载荷	W	D	d	E	S	自重
	T	mm	mm	mm	mm	mm	Kg
S-DX0.5-1/4	0.5	12	8	6.5	15.5	22	0.06
S-DX0.75-5/16	0.75	13.5	10	8	19	26	0.1
S-DX1-3/8	1	17	12	9.5	23	32	0.13
S-DX1.5-7/16	1.5	19	14	11	27	36.5	0.21
S-DX2-1/2	2	20.5	16	13	30	41.5	0.28
S-DX3.25-5/8	3.25	27	20	16	38	51	0.6
S-DX4.75-3/4	4.75	32	22	19	46	60.5	1.04
S-DX6.5-7/8	6.5	36.5	27	22.5	53	71.5	1.63
S-DX8.5-1	8.5	43	30	25.5	60.5	81	2.38
S-DX9.5-1 1/8	9.5	46	33	29	68.5	91	3.59
S-DX12-1 1/4	12	51.5	36	32	76	100	4.65
S-DX13.5-1 3/8	13.5	57	39	35	84	111	6.71
S-DX17-1 1/2	17	60.5	42	38	92	122	8.05
S-DX25-1 3/4	25	73	52	44.5	106.5	146	13.18
S-DX35-2	35	82.5	60	51	122	171.5	19.3
S-DX55-2 1/2	55	105	72	66.5	144.5	203	37.22
S-DX85-3	85	127	85	76	165	216	65.3
M4
产品型号	额定载荷	W	D	d	E	S	自重
	T	mm	mm	mm	mm	mm	Kg
M-DX2-1/2	2	2	20.6	16	41.4	77	0.34
M-DX3.25-5/8	3.25	3.25	26.9	19.1	50.8	95.3	0.67
M-DX4.75-3/4	4.75	4.75	31.8	22.4	60.5	115.1	1.14
M-DX6.5-7/8	6.5	6.5	36.6	25.4	71.4	135.4	1.75
M-DX8.5-1	8.5	8.5	42.9	28.7	81	150.9	2.52
M-DX9.5-1 1/8	9.5	9.5	46	31.8	90.9	172.2	3.45
M-DX12-1 1/4	12	12	51.6	35.1	100	190.5	4.9
M-DX13.5-1 3/8	13.5	13.5	57.2	38.1	111.3	210.3	6.24
M-DX17-1 1/2	17	17	60.5	41.4	122.2	230.1	8.39
M-DX25-1 3/4	25	25	73.2	50.8	146.1	278.6	14.24
M-DX35-2	35	35	82.6	57.2	171.5	311.9	21.2
M-DX55-2 1/2	55	55	104.9	70	203.2	377	38.56
M-DX85-3	85	85	127	82.6	215.9	428.8	56.36
